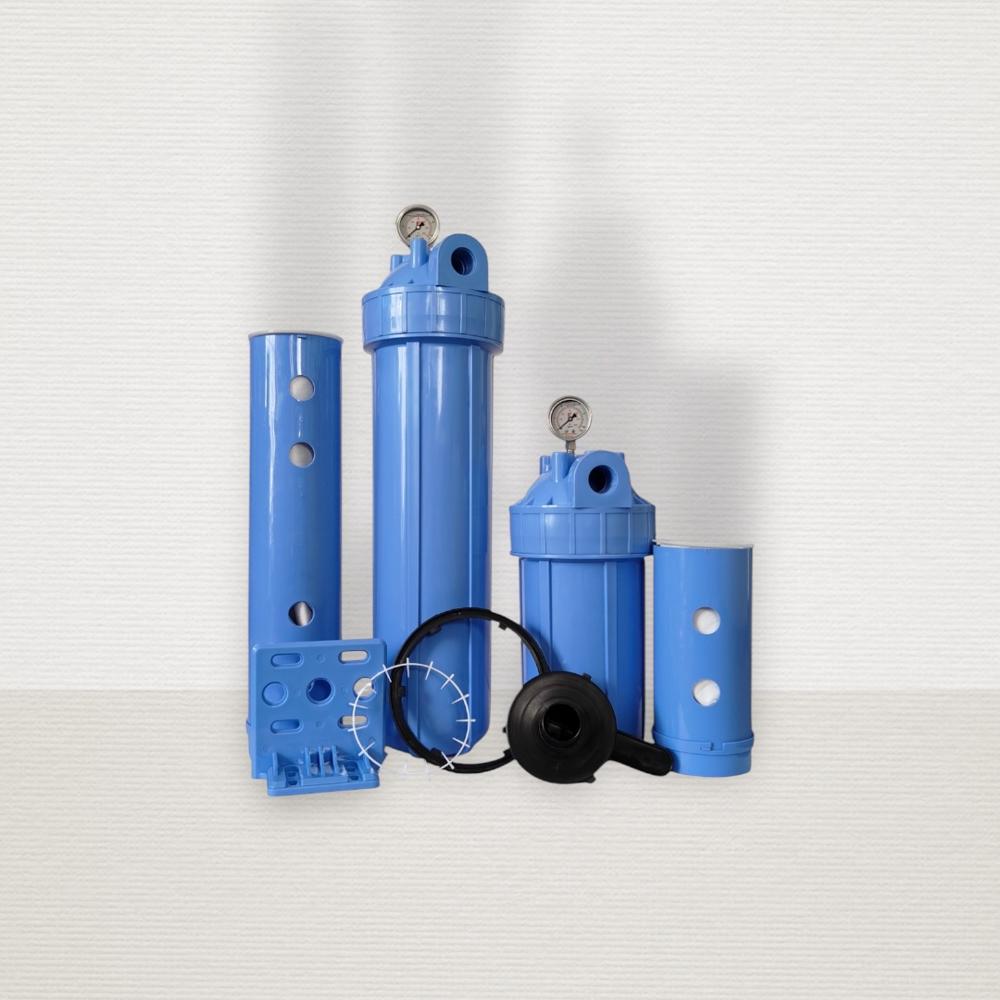

10 bag Filter Assembly

Name: 10 bag Filter Assembly
Brand: AISHWARYAM FILTERS
Price: 2000.0 INR
Availability: InStock

Price 2000.0 INR/ Number

Get a Price/Quote

10 bag Filter Assembly Specification

Flow Rate
10000 m3/h (typical)

Technology
Bag Filter Technology

Features
High Filtration Efficiency, Robust Construction, Easy Maintenance, Compact Design

Accessories
Filter Bags, Cages, Valves, Hopper, Control Panel

Usage
Industrial / Commercial Dust Collection

Type
10 Bag Filter Assembly

Material
Mild Steel (MS)

Purifying Function
Particulate Removal, Dust Filtration

Power
Not Required (Non-Electric)

Valve Type
Manually Operated / Pneumatic Diaphragm Valves

Installation Type
Vertical Floor Mounted

Temperature
Up to 80C

Water Source
Industrial Air/Gas Streams

Dimension (L*W*H)
1200mm x 800mm x 3000mm (Approx)

Weight (kg)
Approx 600 kg

Mounting Type
Floor Standing

Capacity
Up to 10000 CFM

Application
Air Pollution Control, Dust Collection in Industries

Compliance
Meets Industrial Emission Standards

Bag Length
2000 mm

Inlet/Outlet Connection
Flanged

Service Life
1-2 Years (Bag Dependent)

Bag Material
Polyester / Polypropylene / Nomex (as required)

Corrosion Resistance
Yes

Cleaning Mechanism
Reverse Air / Pulse Jet

Pressure Drop
100 - 180 mm WC

Dust Discharge System
Manual or Rotary Airlock

Finish
Powder Coated / Painted

Filter Efficiency
>99.5% for 5 micron particles

No. of Filter Bags
10

10 bag Filter Assembly Trade Information

Minimum Order Quantity
5 Number

Supply Ability
10 Per Day

Delivery Time
5 Days

Main Export Market(s)
Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia

Main Domestic Market
All India

About 10 bag Filter Assembly

10" Bag Filter Assembly Premium Quality for Industrial & Commercial Filtration

Our 10-inch Bag Filter Assembly is designed for high-efficiency liquid filtration in a wide range of industrial and commercial applications. Built with robust, corrosion-resistant housing, it ensures long-lasting performance, easy maintenance, and consistent filtration results.

ey Features:

High Filtration Efficiency Effectively removes dirt, suspended solids, sand, rust, and other impurities.
Premium Build Quality Manufactured from high-grade materials for durability and long service life.
Easy Bag Replacement User-friendly clamp/locking design for quick filter bag change.
Leak-Proof Design Precision-sealed housing prevents bypass and ensures consistent filtration.
Versatile Compatibility Suitable for 10-inch standard filterbags across different micron ratings.

Benefits:

Provides cleaner, clearer water/liquid for downstream equipment.
Reduces maintenance and extends the life of pumps, valves & RO membranes.
Designed for high flow rates & low-pressure drop.
Ideal for continuous and batch processing systems.

Applications:

Industrial RO & Water Treatment Plants
Hotels, Restaurants & Food Processing Units
Commercial Buildings & Institutions
Pharmaceutical, Chemical & Petrochemical Industries
Textile, Paper & Paint Industries

Technical Specifications:

Size: 10 Inch
Material: High-grade Plastic / SS (as per model)
Design: Compact & Easy-to-install assembly
Inlet/Outlet Connection: Standard thread/Flange type (customizable)
Filtration Bags: Available in 20 micron ratings

Efficient Industrial Air Purification

This innovative 10 Bag Filter Assembly guarantees efficient dust and particulate removal from industrial air and gas streams, providing over 99.5% filtration for particles larger than 5 microns. With its high-capacity design (up to 10000 CFM) and compliance with industrial emission standards, it is ideal for factories, warehouses, and commercial plants seeking reliable air pollution control solutions.

Versatile Construction and Cleaning Options

Built from durable mild steel and finished with powder coating or paint, this assembly supports harsh environments. Multiple bag materials-polyester, polypropylene, and Nomex-allow for customization. Cleaning mechanisms include both reverse air and pulse jet systems, enhancing adaptability across varying dust loads and operation schedules.

FAQ's of 10 bag Filter Assembly:

Q: How does the 10 Bag Filter Assembly achieve high filtration efficiency?

A: The assembly utilizes ten filter bags made from high-quality materials such as polyester, polypropylene, or Nomex. Combined with advanced reverse air or pulse jet cleaning mechanisms, it consistently removes over 99.5% of dust particles as small as 5 microns from industrial air streams.

Q: What processes are involved in maintaining the filter bags?

A: Regular maintenance involves monitoring differential pressure (100-180 mm WC), cleaning filter bags using the reverse air or pulse jet mechanism, and periodically inspecting bags for wear based on the recommended 1-2 year service life. Both cleaning systems are designed for easy maintenance and minimal operator intervention.

Q: When should the filter bags be replaced, and what affects their lifespan?

A: Typically, the service life of filter bags ranges from 1 to 2 years, depending on dust type, operating conditions, and maintenance frequency. Signs of reduced performance or visible damage signal the need for replacement to ensure optimal filtration efficiency.

Q: Where can this bag filter assembly be installed?

A: Designed for vertical floor mounting, the unit fits well in industrial and commercial facilities, such as manufacturing units and process plants. Its compact and robust construction supports installation in areas with challenging environmental conditions.

Q: What are the key benefits of using this filter assembly in dust collection systems?

A: The main advantages include high filtration efficiency, reliable particulate removal, corrosion resistance, robust mild steel construction, ease of maintenance, and flexible operational options-making it ideal for meeting stringent emission norms and improving workplace air quality.

Q: How does the dust discharge system operate in this assembly?

A: Users can choose between manual and rotary airlock discharge methods. Manual discharge is suitable for low-dust applications, while the rotary airlock offers automated, consistent removal in higher dust load environments.
