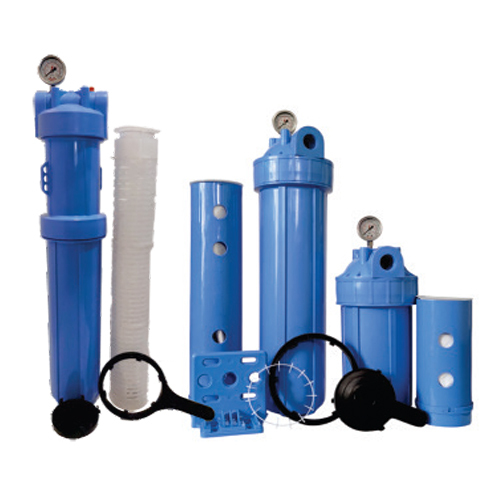

Bag Filter Assembly

Name: Bag Filter Assembly
Brand: AISHWARYAM FILTERS
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Bag Filter Assembly Specification

Shape
Vertical Cylindrical

Filter Rating
150 to 200 Micron

Outlet Diameter
5 Millimeter (mm)

Sealing
Double O Ring

Filter Media
Polypropylene (PP)

Pressure
130-150 PSI

Pore Size
Depends on Filter Bag (1-200 Micron)

Inlet Diameter
1, 1.5 Inch (in)

Usage
FILTERATION

Material
PP, Polypropylene

Size
JUMBO

Type
Other

Height
20 Inch (in)

Cartridge Style
Single Open End

Product Type
BAG FILTER

Diameter
30, 20, 10 Inch (in)

Weight
3.5 Kilograms (kg)

Color
BLUE

Efficiency
Up to 99%

Application
SAND FILTERATION, DUST FILTERATION

Length
48 Inch (in)

Width
8 Inch (in)

Number of Bags
1 (Single Bag Vessel)

End Connection
Flanged / Threaded

Color
Metallic (SS), Blue/Gray (MS Epoxy)

Maximum Flow Rate
Up to 80 m3/hr (varies by model)

Design Standard
ASME / BS / Custom

Operating Temperature
Up to 120C

Mounting
Skid/Bolted Base

Bag Size
4

Lid Type
Swing Bolt closure

Surface Finish
Mirror/Mat Polish for SS; Epoxy Coat for MS

Corrosion Resistance
High (SS) / Moderate (MS Epoxy)

Gasket Material
EPDM / Nitrile / Silicone / Viton

Cleaning
Easy Open Design for Quick Bag Replacement

Bag Filter Assembly Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Week

Delivery Time
7 Days

About Bag Filter Assembly

A Jumbo Bag Filter Assembly is a high-capacity filtration system designed to remove sediment, debris, and suspended solids from water or industrial liquids. Unlike cartridge filters, these utilize a replaceable fabric bag, making them more cost-effective for high-volume applications like commercial RO pre-treatment, cooling towers, and agricultural irrigation.

A standard jumbo bag filter assembly consists of four primary parts:

Housing Body: A heavy-duty, reinforced vessel (typically made of Polypropylene) that contains the pressurized liquid.
Internal cage: A support cage that sits inside the housing to provide structural support to the filter bag, preventing it from bursting under pressure.
Filter Bag: The replaceable media, available in various micron ratings (typically $1$ to $100$ microns). Common materials include Polypropylene felt or Nylon mesh.
Lid and Seal: A secure cover with a heavy-duty Silicon O-ring and a locking mechanism (like a threaded ring or swing bolts) to ensure a leak-proof seal.
